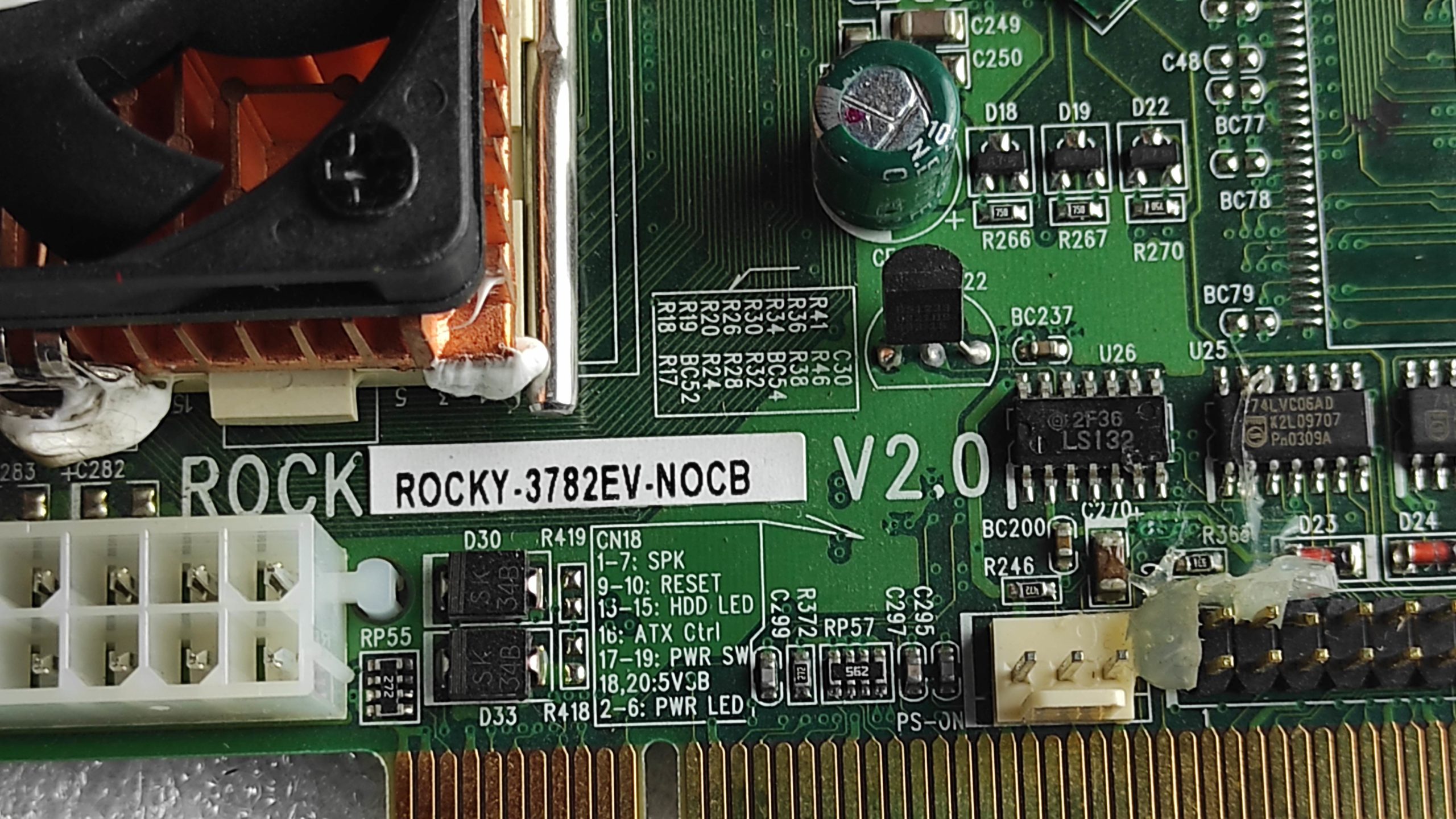

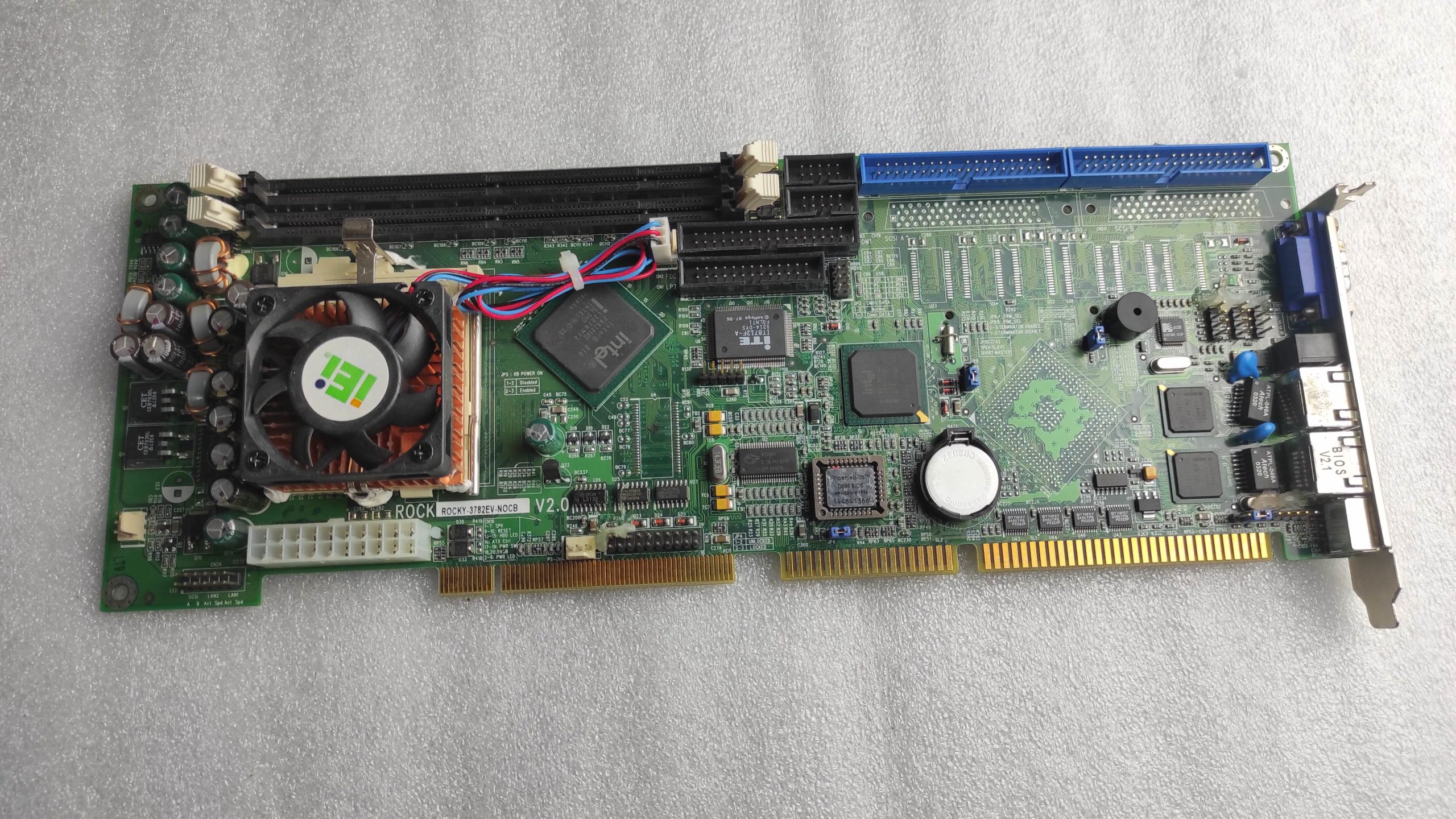

Specifications ROCKY 3782EV NOCB
● CPU : Dual Socket 370 base support Celeron™ (P-PGA)/
Pentium® III (FC-PGA) CPU up to 100MHz FSB
● BIOS : Award BIOS
● System Chipset : Intel® 440BX
● System Memory : 4 x168-pin DIMM sockets up to 1GB SDRAM
● Display : – Chip : SiS 6326
– Bus : AGP 2x
– V-RAM : 4MB
– Resolution : 1600 x 1200 (256 colors)

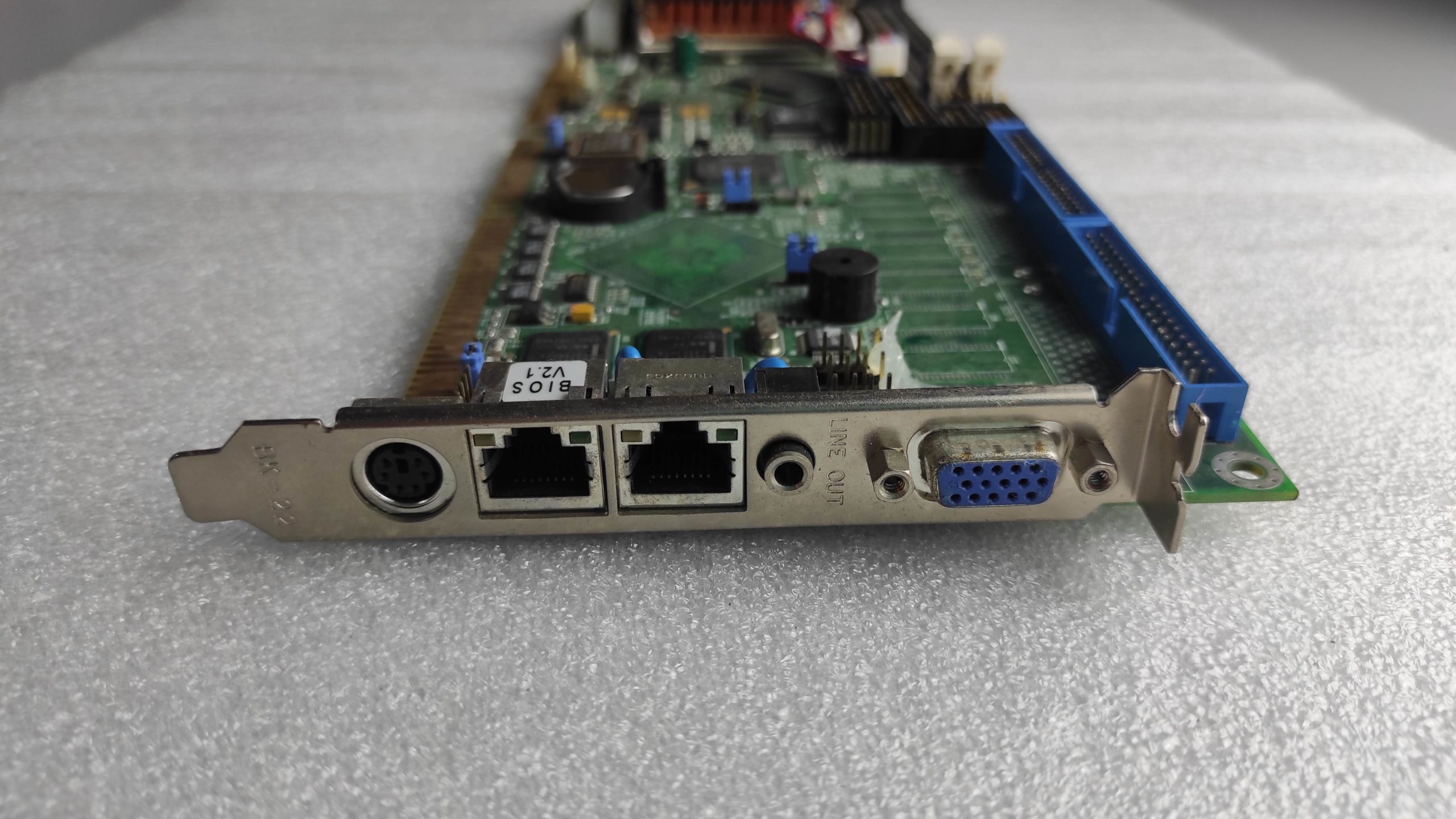

– Connector : DB-15 for CRT display
● Ethernet : Two Intel® 82559 10/100Mbps Ethernet chips
with RJ-45 connectors, support AOL & WOL function
● SSD : One DiskOnChip™ socket
● I/O : – 2 x RS-232 serial port (16C550 UARTs compatible)
– 1 x parallel port (SPP/EPP/ECP)
– 2 x USB 1.1 (Pin header)
– 1 x IrDA (SIR)
– 1 x FDD port, support 1.44MB, 2.88MB, 3-mode function
– 2 x ATA-33 IDE channels
● SCSI Controller :
– Chip : SYMBIOS 53C1010
– Interface : 2 x Ultra160 SCSI (160MB/Sec.; 68-pin connector)
– Drivers : Microsoft Windows NT, Windows 2000, Windows
95/98, Novell NetWare, SCO Openserver, SCO UnixWare,
IBM OS/2, Linux and Sun Solaris
● WDT: software programmable, support 1~ 255 sec. system reset
● Hardware monitoring chip on board
● ISAPlus™ : Designed to enhance the ISA bus drive capability
● Supports ATX power control function
● Power Consumption : +5V@8.5A, +12V@350mA, -12V@50mA
(Dual Pentium® III and 512MB SDRAM)
● Operating temperature : 0°~60°C(CPU needs cooler)
● Relative humidity : 5~95%, non-condensing
● GW: 900g
